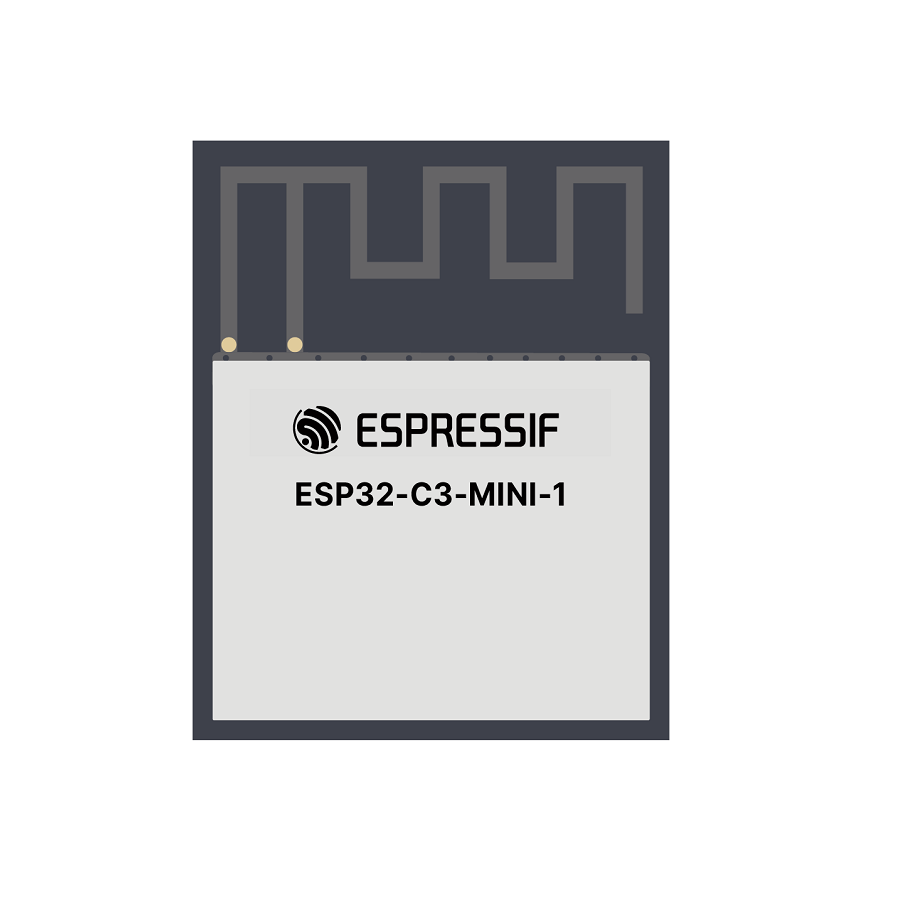

ESP32-C3-MINI-1-N4
Manufacturer:
Espressif Systems
Mfr.Part #:
ESP32-C3-MINI-1-N4
Datasheet:
Description:
RF - Transceiver Modules and Modems Module SMD/SMT Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 2.412 GHz to 2.484 GHz
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Frequency | 2.412 GHz to 2.484 GHz |
| Interface | ADC, GPIO, I²C, I²S, JTAG, PWM, SPI, UART, USB |
| Data Rate | 150 Mbps |
| Current - Receiving | 82 mA to 84 mA |
| Current - Transmitting | 290 mA to 350 mA |
| Output Power | 20.5 dBm |
| Supply Voltage | 3 V to 3.6 V |
| Sensitivity (dBm) | -98 dBm |
| Standard | Bluetooth, WiFi |
| Protocol | 802.11b/g/n, Bluetooth v5.0 |
Stock: 3102
Distributors
pcbx
pcbxUnit Price$2.89757
Ext.Price$2.89757
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.89757 | $2.89757 |
| 10 | $2.55926 | $25.59260 |
| 25 | $2.38403 | $59.60075 |
| 50 | $2.22080 | $111.04000 |
| 100 | $2.06872 | $206.87200 |
| 300 | $2.02796 | $608.38800 |
| 500 | $1.98800 | $994.00000 |
| 1000 | $1.94883 | $1948.83000 |
